Easy to
Install
High Quality &
Reliable
Great Range
of Functions

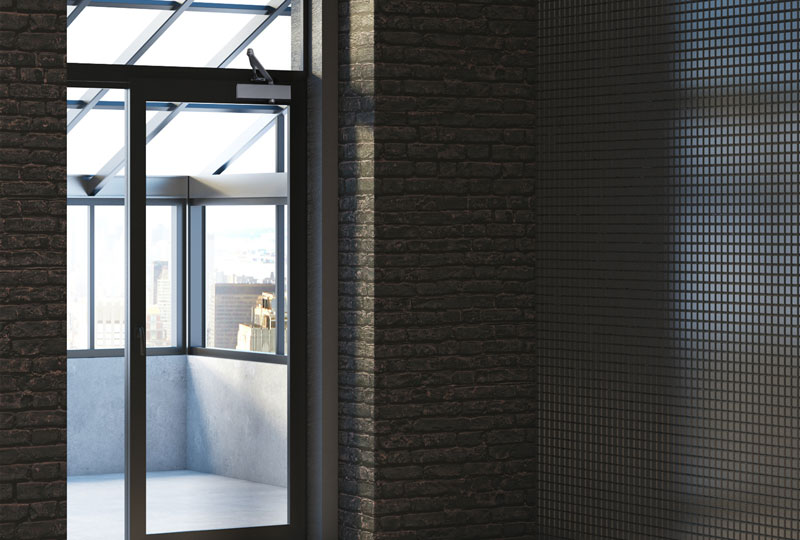

The Carbine Radius contains twenty-seven models to choose from, which includes sixteen Rack & Pinion, six Cam Action, and five Transom models including a sleek designed matte black finish to complement the latest door trends in the market.
* Matte black finish is available in the Rack & Pinion range only.
Carbine Radius is the next generation of commercial door closers. Bringing together years of ingenuity and innovation, the Carbine Radius series includes four Cam Action models, four Rack & Pinion models, and five Transom models to choose from.
Available in a modern silver finish for all Cam Action and Rack & Pinion models and a sleek designed matte black finish for the Rack & Pinion range to complement the latest door trends in the market, the Carbine Radius series is constructed with a superior quality extruded anodised aluminium body for better performance, allowing the Carbine Radius to be cycle tested to a massive 500,000 openings with zero failures, according to the latest standards.
The Carbine concealed Transom Door Closers represent a powerhouse of strength. Offering an adjustable closing latch with adjustable power ratings of 2 to 4 on three models, and a rating of 5 on the top end models. The Carbine Transom Door Closers are available in hold open or non-hold open, have a maximum opening setting of up to 130 degrees, and a maximum door weight of up to 150kg, making them perfect for new installations or an easy retrofit solution as they also include all the required standard installation parts.
The Carbine Radius Cam Action and Rack & Pinion range are fire rated thanks to its new fire-resistant design making it ideal to be installed on commercial doors with a maximum weight of 120kgs.
With adjustable closing and latching speeds, adjustable back check with a thermo-constant valve which adjusts the delayed action, and standard and parallel arm fittings as well as a slide rail arm and hold open arm available as spares, the range allows for easy installation, featuring a non-handed design that is supplied with both wood and metal self-tapping screws, making the Carbine Radius perfect for use on single action, inward or outward aluminium and timber doors.
Rack & Pinion
The Carbine Radius Rack & Pinion series includes four models with adjustable closing, latching speeds, and back check.
They are all single-action closers with a transom mount on the push side and non-handed installation making them easy to install on inward or outward opening doors. The Carbine Radius Rack & Pinion door closers are supplied with everything you need for your next installation including standard and parallel arm fittings, and timber and self-drilling metal screws.
- 2-hour fire rated under AS1905 standards
- Tested to EN1154 standards
- Max opening angle 180 degrees
- Adjustable closing and latching speed
- Adjustable back check
- Thermo-constant valve
- Surface mount
- Transom mount on push side
- Supplied with standard and parallel arm fittings
- Single-action door
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Constructed with extruded anodised aluminium body
- Track arms available for all models
- Hold open arms available for all models
CDC-1-S
- Adjustable power size 2-4
- Parallel bracket mount on size 3-4
- Max door width 1100mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Positional mounting for closer strength
- Body size 207mm x 60mm x 39mm
- Available in silver finish
CDC-1-MB
- Adjustable power size 2-4
- Parallel bracket mount on size 3-4
- Max door width 1100mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Positional mounting for closer strength
- Body size 207mm x 60mm x 39mm
- Available in matte black finish
CDC-3-S
- Adjustable power size 2-4
- Parallel bracket mount on size 3-4
- Max door width 1100mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Positional mounting for closer strength
- Body size 236mm x 60mm x 39mm
- Available in silver finish
CDC-5-S
- Adjustable power size 2-6
- Parallel bracket mount on size 3-5
- Max door width 1400mm
- Adjustable delayed action
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Size 5 width of 1250mm and weight of 100kg
- Size 6 width of 1400mm and weight of 120kg
- Positional mounting for closer strength
- Body size 256.5mm x 60mm x 48mm
- Available in silver finish
Cam Action
The Carbine Radius Cam Action series includes four models with adjustable closing, latching speeds, and back check with a thermo constant valve which adjusts the delayed action.
- 2-hour fire rated under AS1905 standards
- Tested to EN1154 standards
- Max opening angle 180 degrees
- Adjustable closing and latching speed
- Adjustable back check
- Thermo-constant valve
- Surface mount
- Supplied with standard track arm
- Single-action door
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Constructed with extruded anodised aluminium body
- Available in silver finish
- Retrofit mounting plates available
- Hold open packs available
- Angle brackets available
They are all single-action closers with a transom mount in either push or pull side and non-handed installation making them easy to install on inward or outward opening doors. The Carbine Radius Cam Action door closers are supplied with everything you need for your next installation including standard track arm fittings, and timber and self-drilling metal screws.
CDC-CA1B-S
Door mount on pull side & transom mount on push side.
CDC-CA1G-S
Door mount on push side & transom mount on pull side.
- Adjustable power size 1-4
- Max door width 1100mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Body size 240mm x 56mm x 43mm
CDC-CA2B-S
Door mount on pull side & transom mount on push side.
CDC-CA2G-S
Door mount on push side & transom mount on pull side.
- Adjustable power size 1-5
- Max door width 1250mm
- Size 2 width of 850mm and weight of 40kg
- Size 3 width of 950mm and weight of 60kg
- Size 4 width of 1100mm and weight of 80kg
- Size 5 width of 1250mm and weight of 100kg
- Adjustable delayed action
- Body size 257mm x 60mm x 48mm
Transom
The Carbine concealed Transom Door Closers represent a powerhouse of strength. Offering an adjustable closing latch with adjustable power ratings of 2 to 4 on three models, and a rating of 5 on the top end models.
- Adjustable closing and latching speed
- Suitable for single and double action doors
- Available in hold open or non-hold open models
- Easy retrofit solution
The Carbine Transom Door Closers are available in hold open or non-hold open, have a maximum opening setting of up to 130 degrees, and a maximum door weight of up to 150kg, making them perfect for new installations or an easy retrofit solution as they also include all the standard installation parts required.
CTC-1
- Strength 2-4
- Suits doors up to 100kg
- Suits door 900mm to 1100mm wide
- Available in hold open or non hold open models
- Available with opening options of 90 and 105 degrees
- Includes arm and all fixings
CTC-5
- Strength 5
- Suits doors up to 150kg
- Suits doors 1250mm wide
- Available in 90 degree hold open or non hold open models
- Includes arm and all fixings
- Max opening of 105 degrees
Innovation in lock design
All Carbine locks are developed in collaboration with some of Australia’s most talented and visionary locksmiths. It’s your guarantee of superior quality, versatility and ease-of-installation.
