Carbine’s Door Saver Plates simplify repairing and strengthening doors that have been attacked by intruders.
Constructed from stainless steel, it is a one-piece plate that comes with screw fixings for improved security, and a unique spacing ring that covers different backsets. With a 2 hour fire rating (Firecore, E-Core, and Pyropanel)*, these door saver plates have your safety and budget in mind. By installing the Carbine Door Saver Plate, you can reduce costs on replacing an entire fire rated door.
The Carbine Door Saver Plates feature drill locating holes that allow you to easily fit a Carbine Latch Guard over the plate. Besides the easy installation and high quality material, the Carbine Door Saver Plates are designed to look stylish and harmonise with existing door hardware and building aesthetics.
*on selected models only.
- Backset variation available for 60/70mm
- 1 hour fire rating
- 280mm high, 0.7mm thick
- Made for fitting with locksets or deadbolts
- Stainless steel construction
- Models to suit four different door thickness sizes of 32mm, 35mm, 40mm & 45mm
- Includes concealed sleeve nuts and bolts for secure fixing
- Includes drilling points for optional fitting with a Carbine Latch Guard
- Additional door trim plates (CTP-LS1-SS and CTP-DB1-SS) available to suit 54mm lockset or deadbolt holes
Carbine Cylinder pull plates available in three designs that will work with any standard rim cylinder or any standard cylinder deadbolt.
- Used where no doorknob or handle is supplied
- Made of brushed stainless steel
- Excellent pull projection to accommodate even the largest of fingers
- Available in stainless steel finish
Nightlatch Model
CPP-CRC-1
100mm x 60mm
30mm hole diameter for rim cylinders
Deadbolt Model
CPP-DB-1
110mm x 80mm
42mm hole diameter
Deadbolt Model
CPP-005-1 suits Lockwood 005
105mm x 80mm
54mm hole diameter
Packing plates available to provide installation on thicker doors or where more depth is required.

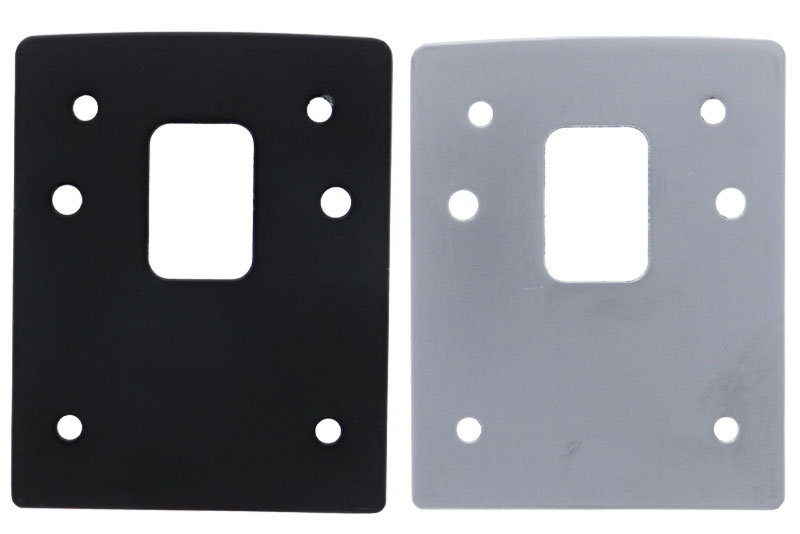

CSP-DOP and CSP-DOP-SC
Black & Satin Chrome Finish
3mm packing plate suits
Lockwood 001 deadlatch.

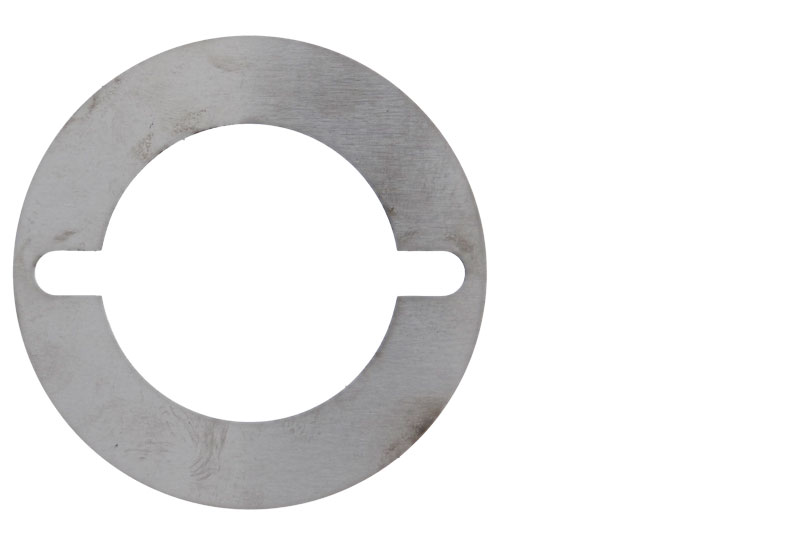

CPP-PD7-SS
87×1.5mm Stainless Steel Finish
Packing plate to suit
Carbine PD7000 Leversets.

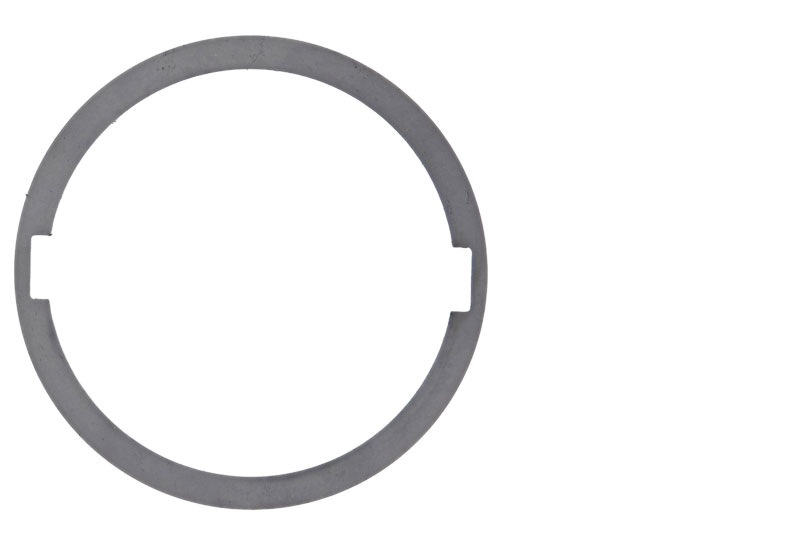

CPP-PE3-SS
Stainless Steel Finish
Packing plate to suit Carbine
PE3000, PS4000, PR6000, and PA8000 knobset series.

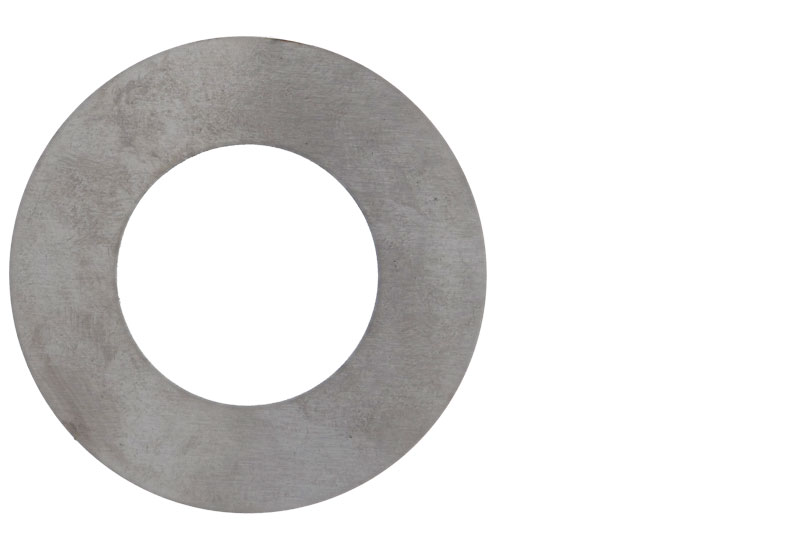

CPP-RRF1-SS
86×1.5mm Stainless Steel Finish
Packing plate to suit standard round rose furniture.

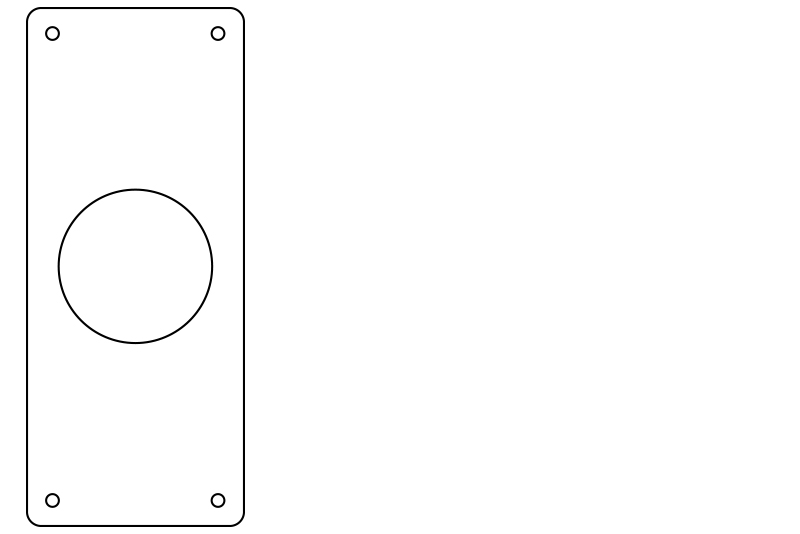

CTP-DB1-SS
203X85X60mm Stainless Steel Finish
Door trim plate.

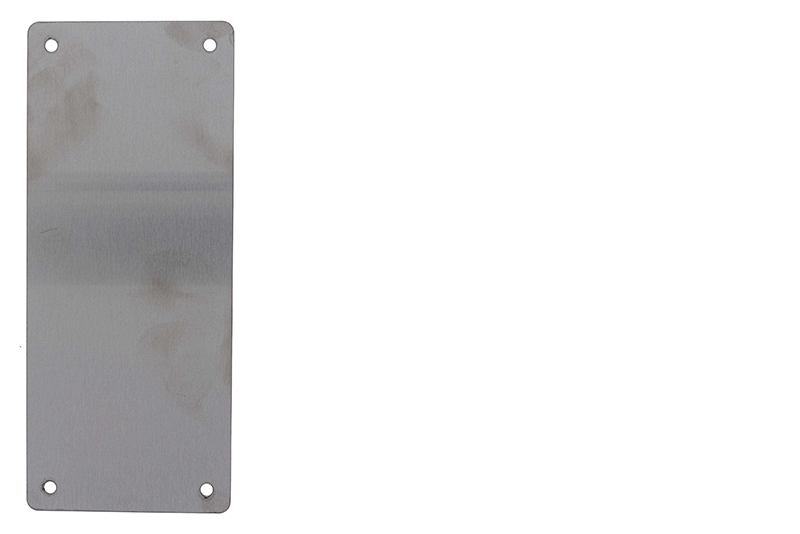

CTP-P1-SS
200 x 85mm Stainless Steel
Plain scar trim plate used for various holes.

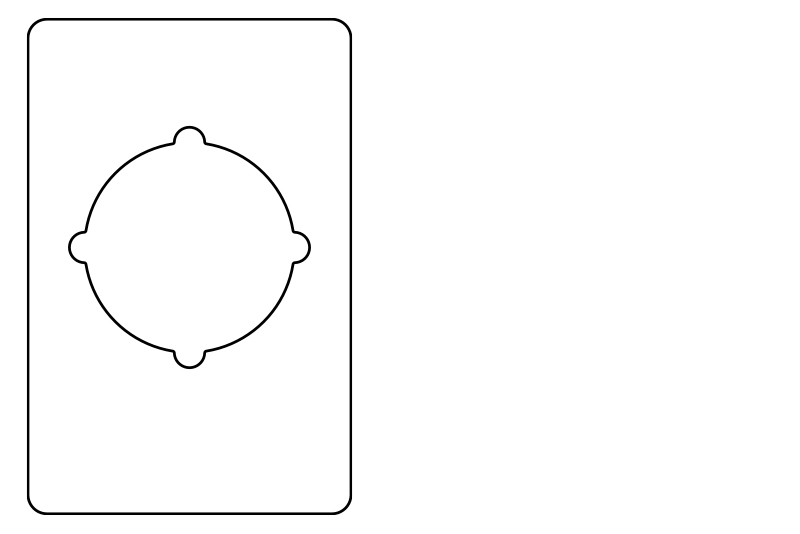

CTP-LS1-SS
130x85x55x1.5mm Stainless Steel Finish
Stainless Steel – Door trim plate lockset. 60/70 reversible.

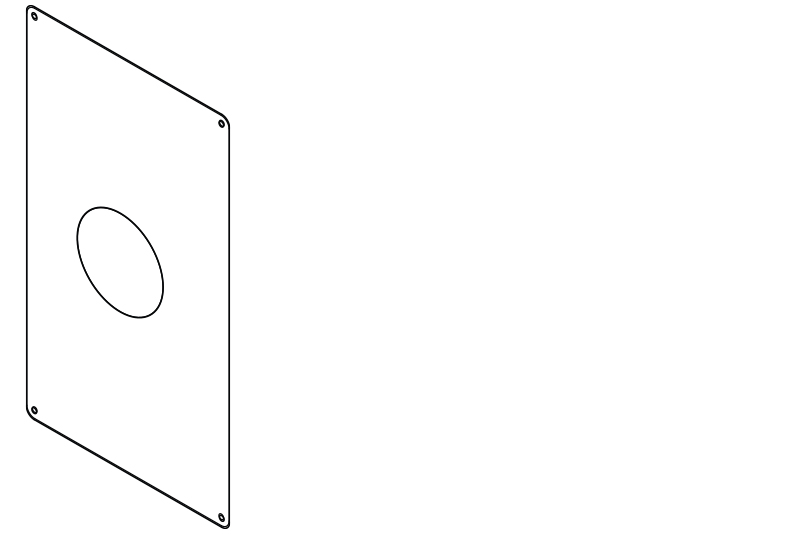

CTP-L-1
230x130x55x1.5mm Stainless Steel Finish
Carbine door scar plate large suits 54mm lockset / deadbolt holes.

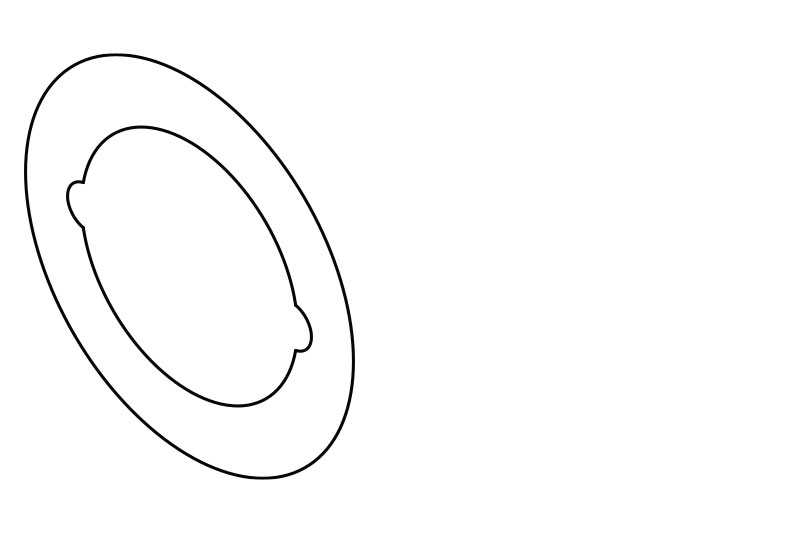

CLWPP-1
1.5mm Stainless Steel Finish
530 / 005 packer suits Lockwood 530 / 005.
C530DG-1
1.5mm Stainless Steel Finish
DGT530 scar plate suits Lockwood DGT530 digital.

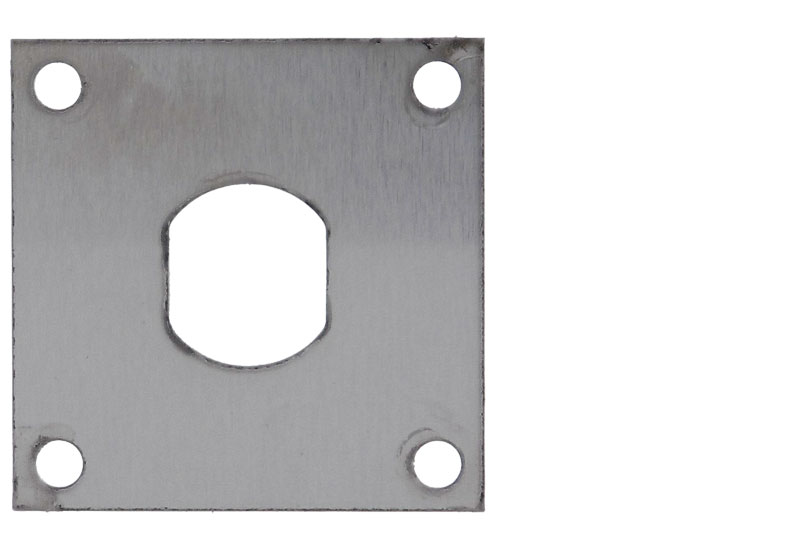

CTP-CL1-SS
50X50X1.5mm Stainless Steel Finish
Can also act as a scar plate or just to stop a cam lock from spinning.Â

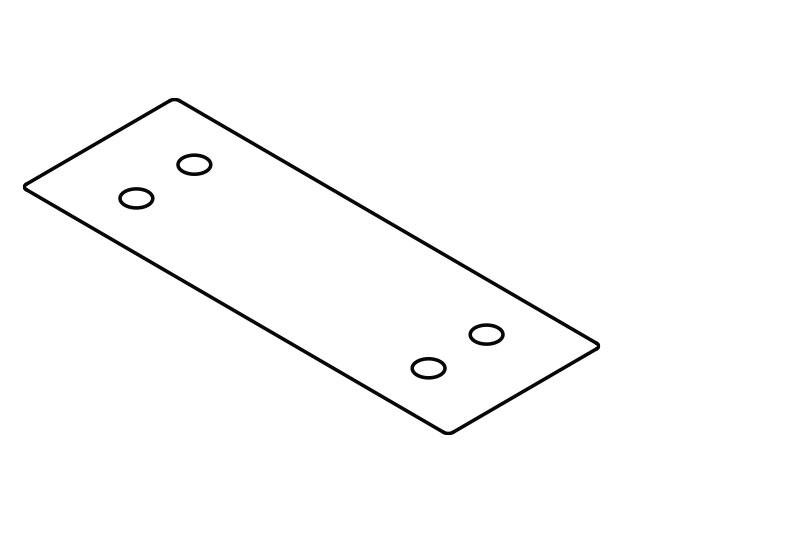

C680PP-1
Stainless Steel Finish
680 packer suits Lockwood 680 patio bolt.

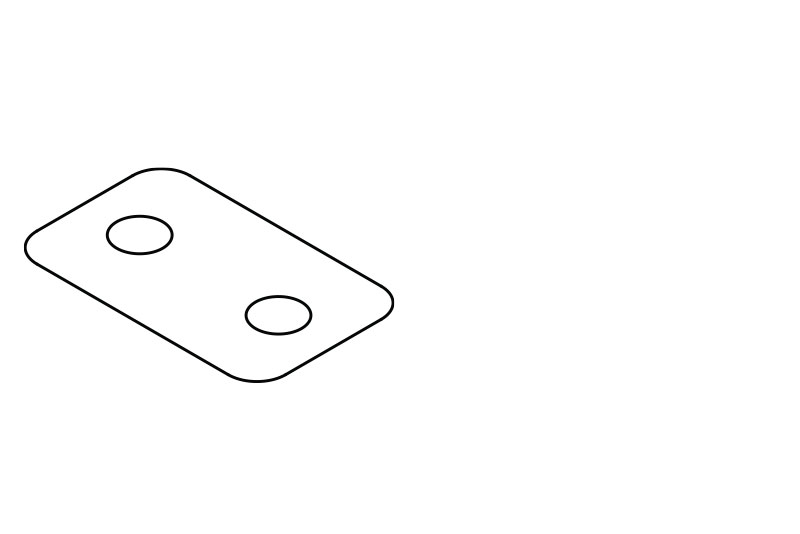

C444DDPP-1
Stainless Steel Finish
444DD strike packer suits ADI 444DD strike.
C444PP-1
Stainless Steel Finish
444 packer suits ADI 444 body.

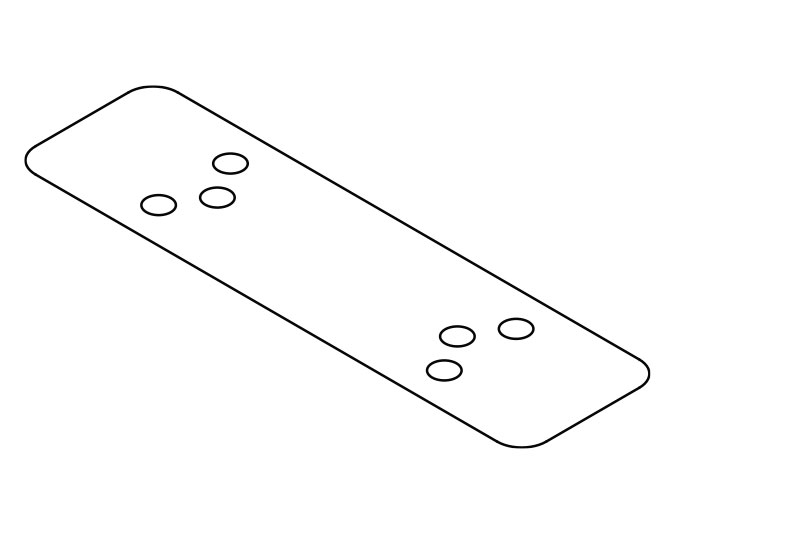

C5004PP-1
Stainless Steel Finish
5004 packer suits ADI 5004 bolt.

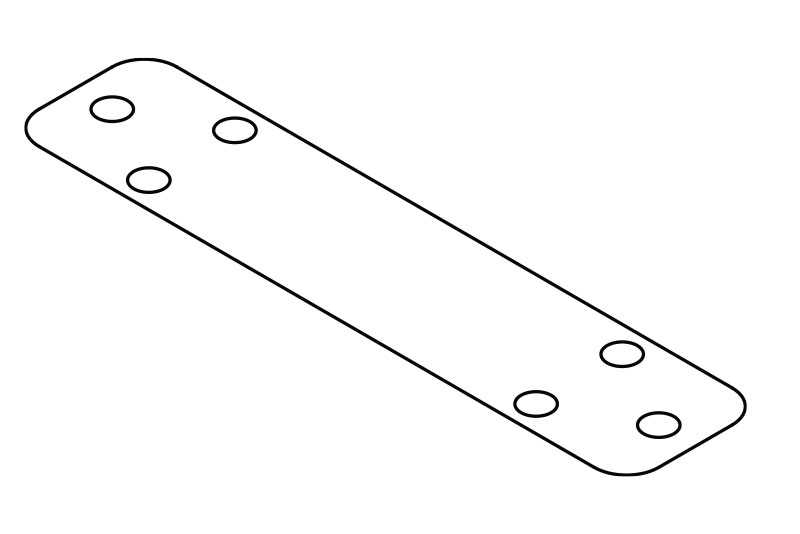

CSL5PP-1
Stainless Steel Finish
SL5 packer suit ADI SL5 bolt.

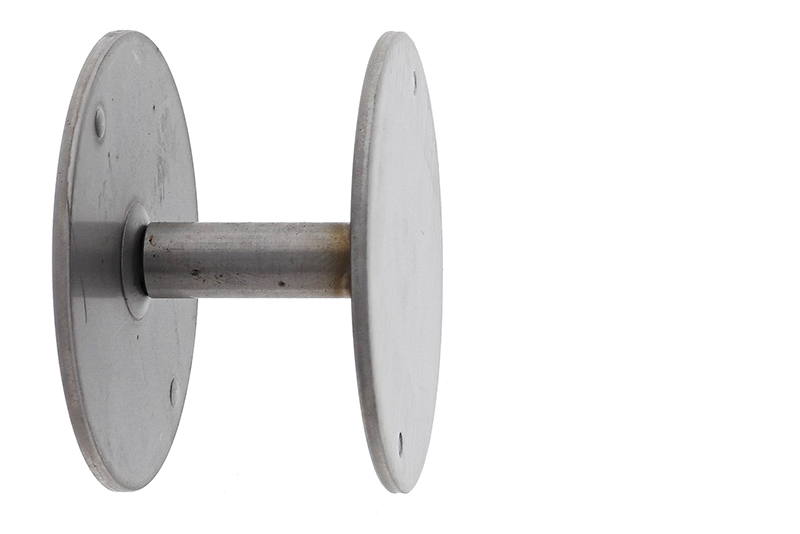

CP-201
Stainless Steel Finish
Filler plates used for Rim Cylinders
CP-LFP
Stainless Steel Finish
Scar plate screw in latch face plate. Used for 25mm face plate holes.

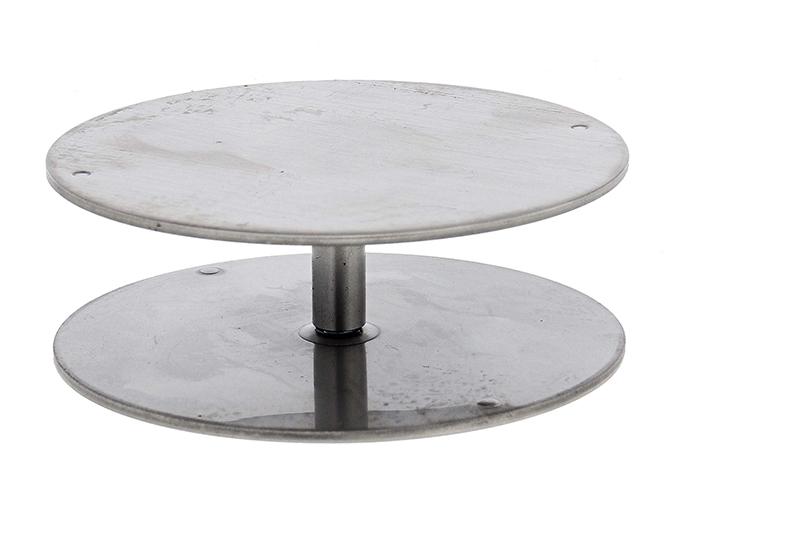

CP-LS
Stainless Steel Finish
Standard model. 48mm diameter.
Suits 40mm door.

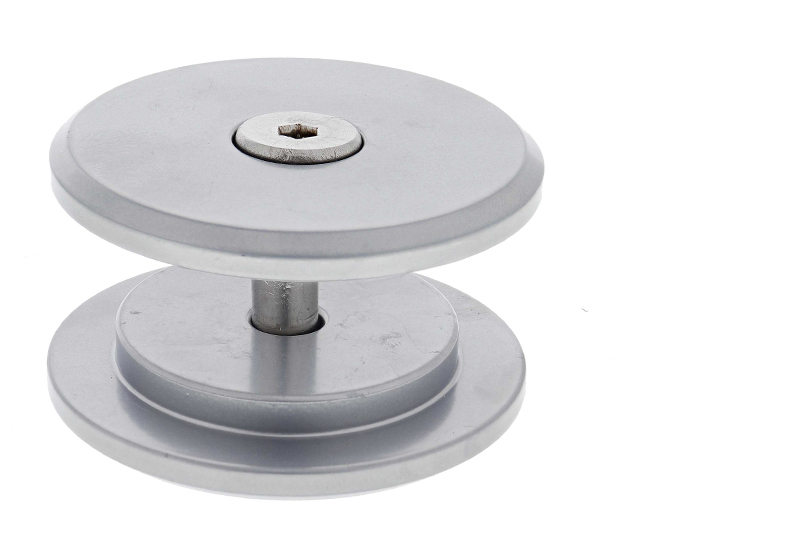

CPHD-1
Stainless Steel Finish
Heavy duty model. 70mm diameter. Suits door thickness from 31-50mm.
