Leversets
Carbine commercial grade leversets are superior quality locks that are rekeyable to suit most commercial keys as well as restricted keys.
Carbine Leversets can be ordered to suit most functions including entrance, privacy, passage, vestibule, patio, glass, classroom, double cylinder, double cylinder vestibule, half cupboard, dummy, and lockset/lever combinations. With optional knob spinners which is a free spinning knob shroud that fits over the external knob on a lockset or a lockset/leverset combination that safeguards the lock from a stillson attack.

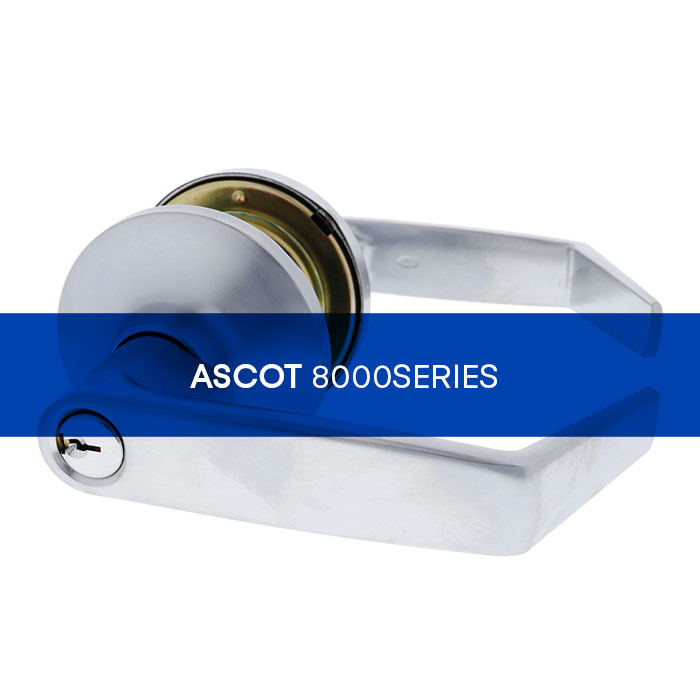

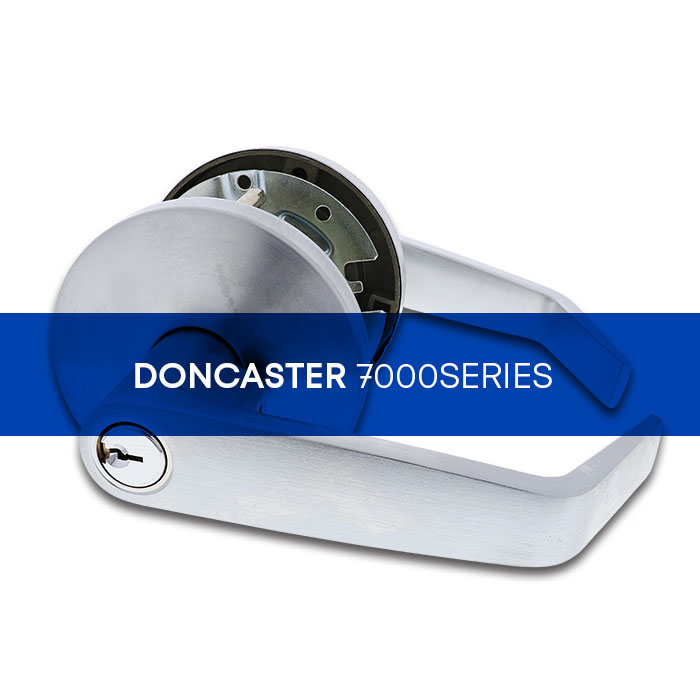

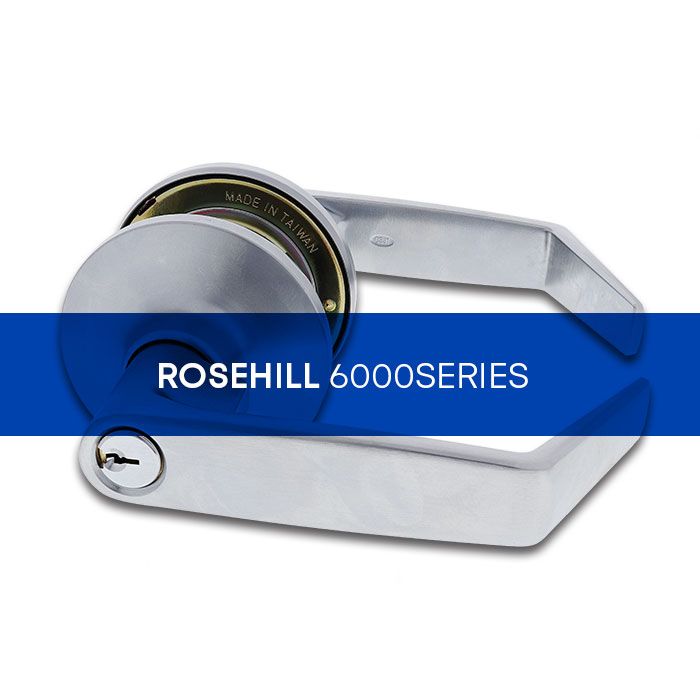

The Newmarket 6000 series, Rosehill 6000 series, Doncaster 7000 series, and the Ascot 8000 series make up the Carbine Commercial Grade Leversets which are cycle tested for up to 400,000 openings (250,000 openings for Newmarket) with zero failures and are designed to endure the daily grind. The Newmarket, Doncaster, and Ascot series have L1 (BCA AS1428.1) compliant lever handles. With Australian fire rating tested, the Carbine Commercial Grade Leversets are built to withstand the toughest environments.
* * Rosehill 6000 Series: Fire rated for 2 hours to Tyco specifications & Firecore | Ascot PA8000 Series: Fire rated for 2 hours to Tyco specifications & Firecore | Doncaster PD7000 Series: Fire rated for 4 hours to Tyco specifications | Newmarket 6000 series: Fire rated for 2 hours to E-core & Firecore
specifications
Features
- Commercial-grade Leversets are cycle tested for up to 400,000 openings with zero failures include the Rosehill 6000 series, Doncaster 7000 series, and Ascot 8000 series
- York 6000 series cycle tested to 500,000 openings with zero failures
- York 6000 series salt spray tested to 200 hour
- Newmarket 6000 series cycle tested to 250,000 openings with zero failures.
- Available in visible tiebolt fixing (Rosehill 6000 series), extra fixing points with a lightweight lever design for less sag over time (Newmarket 6000 series), concealed fixing with a large rose and two extra fitting lugs (Doncaster 7000 series), and concealed tiebolt fixing (Ascot 8000 series).
- Easy to use and fully rekeyable
- Brass barrel and stainless steel bolt
- Fire rated (4 hours for Doncaster 7000 Series)
- York 6000, Newmarket 6000, Doncaster 7000, and Ascot 8000 series available with L1 lever, compliant with NCC codes
- Capable of taking nearly all higher security restricted cylinders
- Accessories such as rebate kits, internal knobs and spare parts available
- Various finishes available
Entrance
Set
Privacy
Set
Double Cylinder
Vestibule Set
Dummy
Set
Passage
Set
Vestibule
Set
Classroom
Set
Double Cylinder
Set
Latching
Halfset
Innovation in lock design
All Carbine locks are developed in collaboration with some of Australia’s most talented and visionary locksmiths. It’s your guarantee of superior quality, versatility and ease-of-installation.
