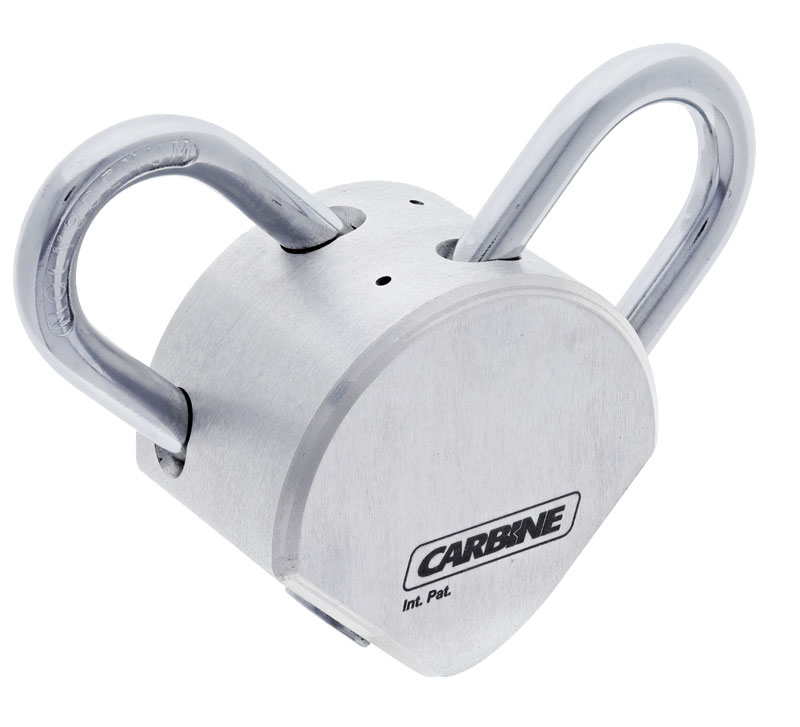

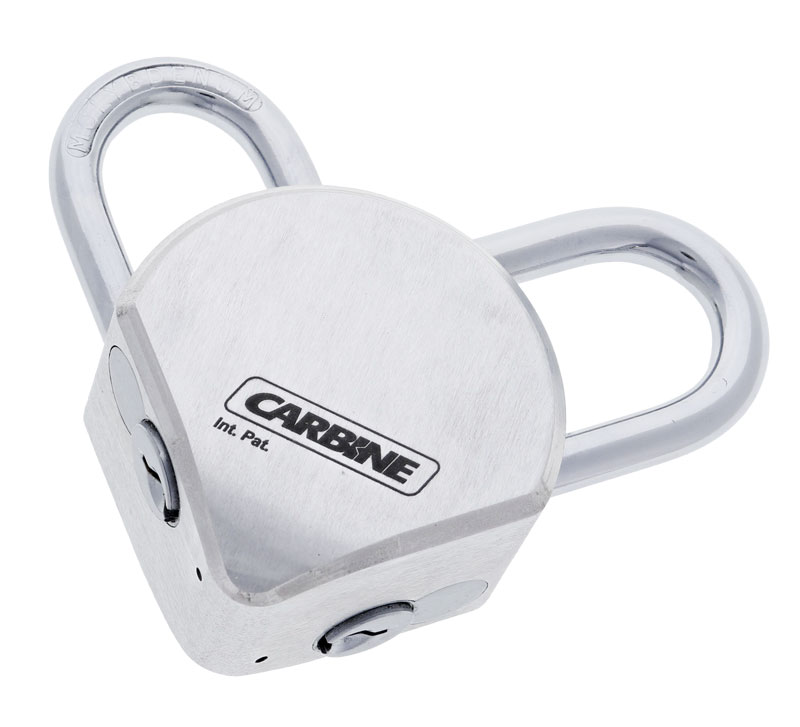

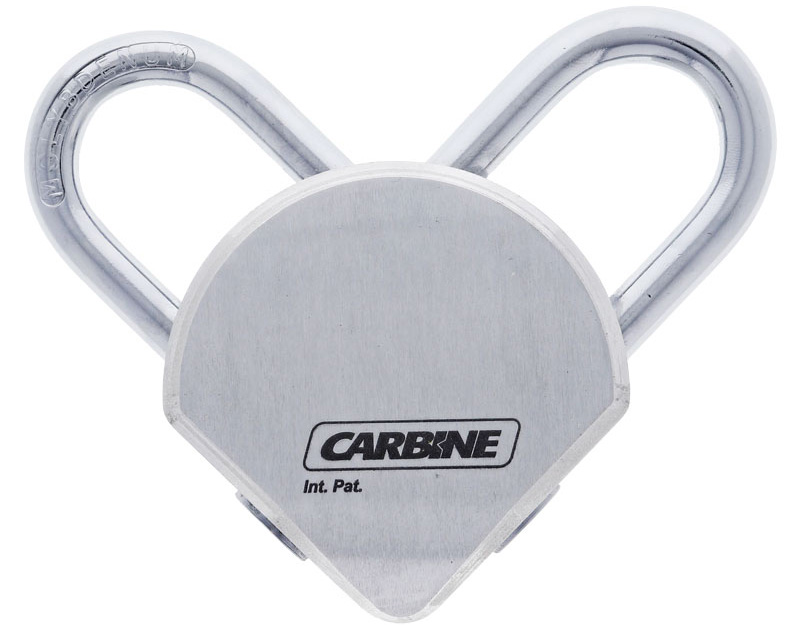

Revolutionary padlock designed to enable the use of two shackles and two separate keying systems.
The Carbine Dual Shackle padlock eliminates the need of any welding to the padlock, chain and gate. The uniquely designed padlock allows shared access through two individual shackles, operated by two individual keys or key systems, each operating their own shackle, thus providing their own access and ultimately creating a shared access solution.
NB: No Barrel
NC: No Cylinder
NS-NB: No Shackle & No Barrel
NS-NC: No shackle & No Cylinder
All dimensions are in mm – RRP inc. GST
The dual shackle design means access is easily granted to either party, yet removal of the padlock can be configured to require one or both shackles to be unlocked. There are multiple locking configurations available. For example, a chain that wraps around the gate and locks in with the first shackle (shackle A), then wraps around the gate post
and the second shackle (shackle B), forming a closed loop. If someone has a key to shackle B, they can still access the facility, but the padlock and chain remain connected to the gate – securing your assets and eliminating the risk of losing a padlock.
64.5mm diameter (32.25mm radius) + 52mm width
Dual system and reversible cam
Non anti drill cylinder
Standard function of key retained. Can be converted to snap shut
Shackles duplex nickel & chrome plated hardened to 60HRC
Extended shackle models
8mm molybdenum alloy shackle
7.93mm double ball locking
6061 aluminium body.
Made from 6061 aluminium body, made by Carbines own CNC machine in Australia and steel components hardened to HRC 60 grade, you can be assured that the dual shackle padlock is made for providing strength in security that is expected from the Carbine range.
Security: (3.5 / 5) Endurance: (4.5 / 5) Weather Resistance: (4.0 / 5)
All Carbine locks are developed in collaboration with some of Australia’s most talented and visionary locksmiths. It’s your guarantee of superior quality, versatility and ease-of-installation.
